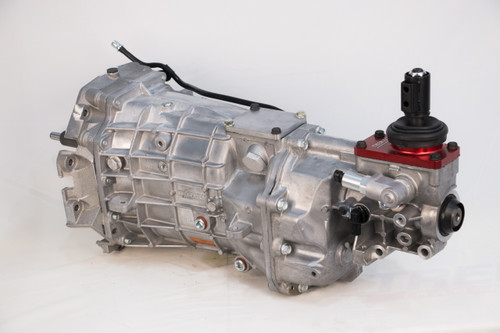

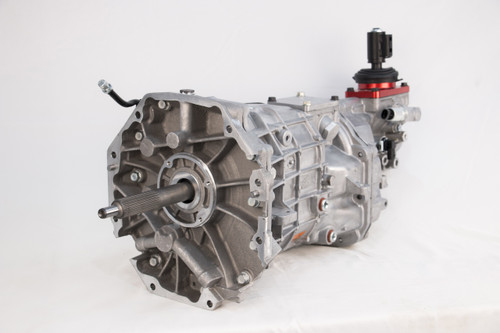

TREMEC Magnum-F 6-Speed Transmission (GM)

Retail: Price: $3,395.00
Retail:
Price: $3,395.00
Weight: 145.00 LBS
Shipping: $200.00 (Fixed shipping cost)
Quantity:
Share

Product Description

Designed to replace T-56 transmissions in 1998-2002 GM F-bodies, the Magnum-F leverages TREMEC's TR-6060/Magnum architecture in order to provide fourth-gen enthusiasts significantly improved performance and relief from a shrinking pool of quality T-56 replacement parts.

One shifter location is designed for LS1-powered 1998-2002 F-bodies and other applications that utilize a similar shifter position. Beneficiaries include third-generation F-bodies, LT1-powered fourth-gens, LS-swapped late models of all varieties, and sport compact applications such as A80 Supras, FD RX-7s, and more! Where the original Magnum shifter locations may prove too far forward, and the extended length Magnum XL's too far back, the Magnum-F's in-between position often proves to be just right.

Inside, the Magnum-F benefits from the same durable componentry found in many of today's hardest hitting OEM muscle & sports cars. Over the T-56, the Magnum-F boast increased face-width on all gears, a robust combination of double and triple cone synchronizers, enhanced webbing in the main case, provisions for a cooler circuit and more! The shifter provides the precise and communicative shift feel that all Magnums are known for.

Like all TREMEC aftermarket transmissions, the Magnum-F is made from 100% brand-new OEM-quality content.

  • 1993-2002 LS1 Camaros and Firebirds
  • Suitable for conversions in 1993-1997 LT1 Camaros & Firebirds
  • 700 lb.-ft. (949 Nm) of torque capacity
  • Combination of double and triple cone synchronizers
  • Maximum rated RPM: 7800
  • Choice of two different gear ratio sets (2.66 or 2.97) with double overdrive
  • Reasonably light weight at 140 lbs (64 kg) dry

Part Number

Style

Torque Rating

Input Spline

Output Spline

Gear Ratios

1st

2nd

3rd

4th

5th

6th

R

TUET16362

GM

700 lb-ft

26

 31

2.66

1.78

1.30

1.00

0.80

0.63

2.90

TUET16363

GM

700 lb-ft

26

 31

2.97

2.10

1.46

1.00

0.80

0.63

2.90

TUET(TBD)

GM

700 lb-ft

26

 31

2.66

1.78

1.30

1.00

0.74

0.50

2.90

TUET17638

GM

700 lb-ft

26

 31

2.97

2.10

1.46

1.00

0.74

0.50

2.90
