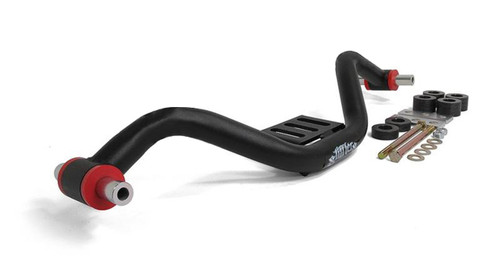

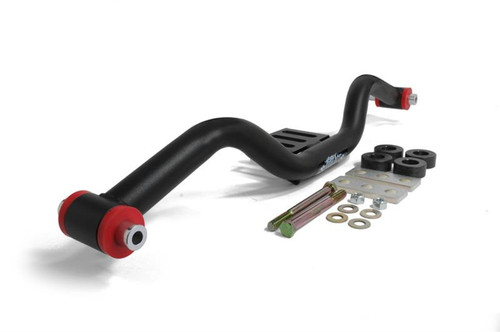

"The" Crossmember for your 1994 - 1998 Conversion - Direct bolt-in for your C4, PowerGlide*, TH-350* & Top Loader Swap!

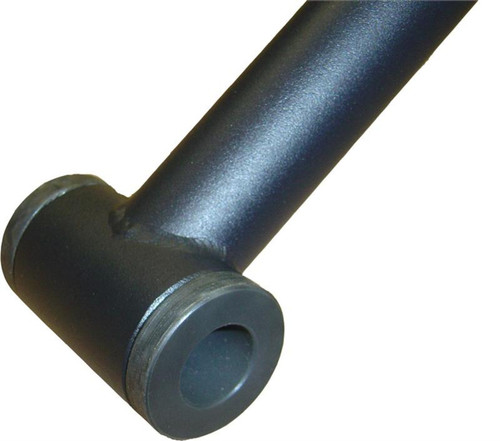

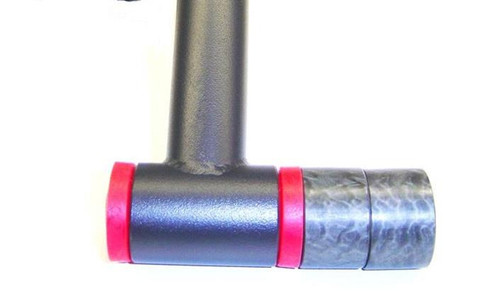

Stifflers unique single tube design adds stiffness and strength far beyond that of the OEM versions while offering versatility like no other. Simply slide the mounting sleeves and reposition the spacers to cover C4, Power Glide*, TH-350* and Top Loader applications. The crossmember is engineered to work with OEM and aftermarket transmission mounts; all while maintaining your current pinion angle. Low deflection polyurethane bushings are used in the mounts to dampen driveline vibrations and noise. For racing applications the polyurethane bushings can be replaced by optional solid bushings.
- Use Stifflers adapter (TM-M02) and transmission mount (300-ES31108G)
- Single tube design for maximum stiffness without excess weight.
- Easily adjust for C4, PowerGlide*, TH-350* & Top Loader transmissions.
- Uses factory located 3.3" wide body mounts, no relocation required.
- Engineered to maintain pinion angle when using either OEM or aftermarket transmission mounts
- Allows more exhaust clearance than OEM style.
- Supplied with polyurethane bushings or can be replaced with optional solid bushing for racing applications.
Notes:
- Optional PowerGlide Solid Mount available, TM-M01
- *Power Glide & TH-350 require additional spacing due to a shorter mounting pad height.
